Use

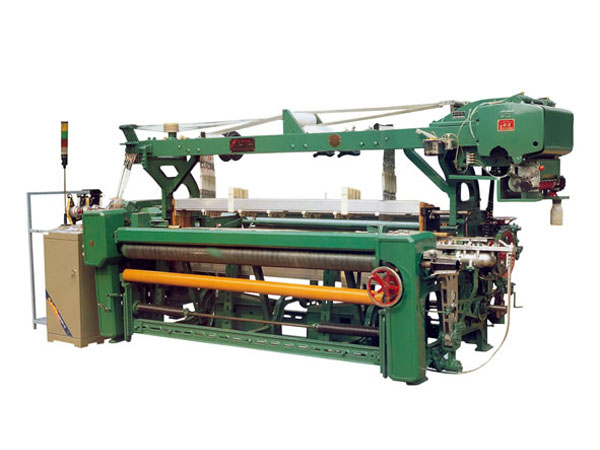

The SJ758 series rapier mainly suitable for weaving natural fibers (cotton, wool, hemp), artificial fiber, decorative yarn, chenille yarn, woven into thin, thick, heavy fabric. Feature This machine can meet the requirements of the textile market Weaving, best cost performance. Machine uses variable program controller (PLC) control, with weft insertion device automatically find and weft stop motion device, multi-color weft selection, semi-automatic oil supply, with stable performance, low noise, easy operation and maintenance, beautiful appearance, adaptation wide range of characteristics.
|
|
The main technical parameters |
|||
| Nominal reed width（cm） |
1800-2000 |
2200-2300 |
3300-3600 |
| Speed(rpm) |
200 |
180 |
120 |
|
Latitude and longitude range
|
4-47root/cm |
||
|
Opening device |
GT221,GT221-11(User selectable) |
||
|
Disc diameter |
600mm |
||
|
Motor Power |
1.5kw |
||
|
Choice of yarn weft |
Four-color - six-color |
||
|
The weight of the machine |
1600Kg |
||
|
Maximum roll diameter |
300mm |
||
